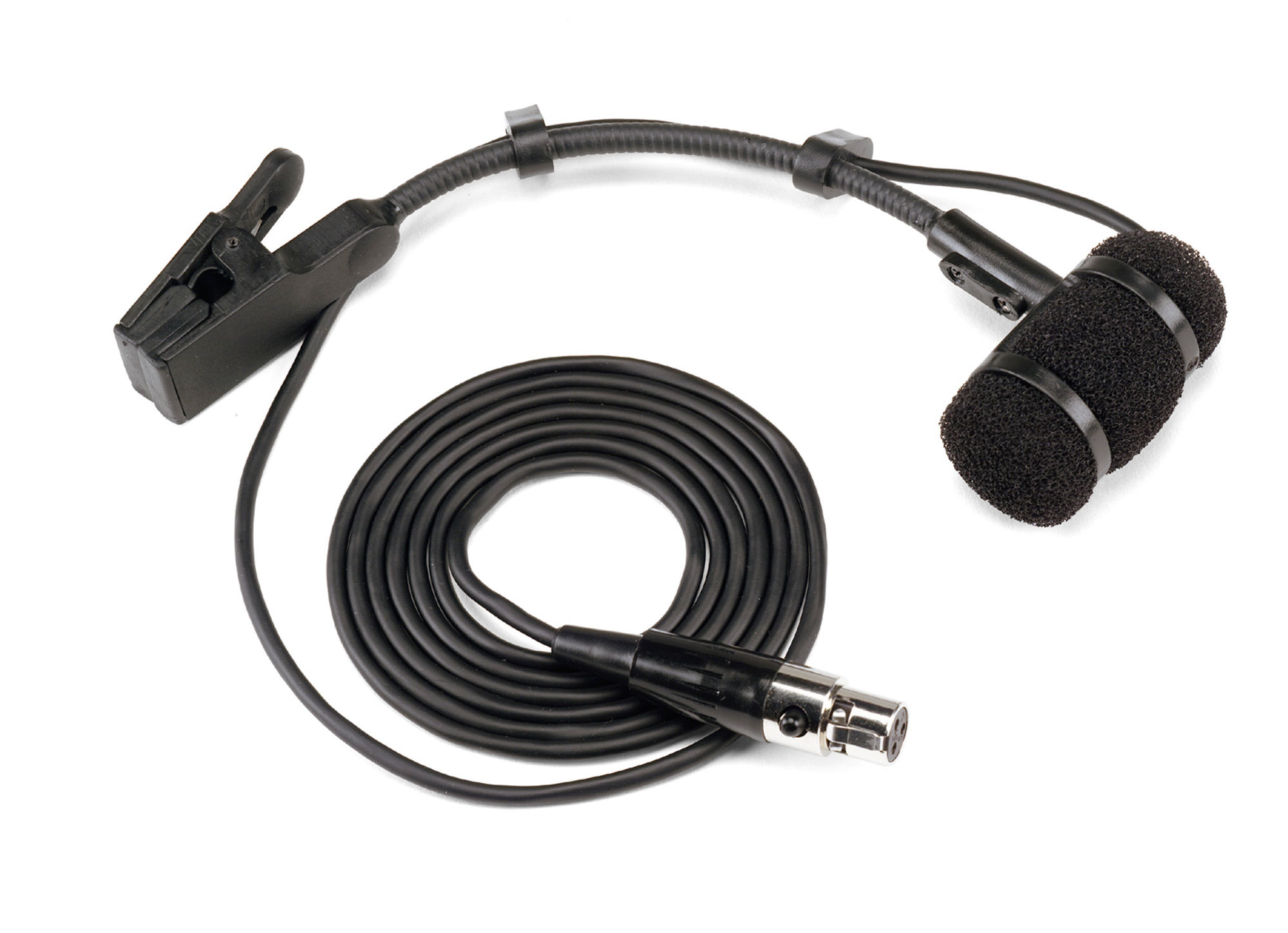

HM40

Horn Microphone with P3 (TA3F) Connector

The HM40 is a professional clip-on microphone designed specifically for performing musicians who need to amplify their brass, woodwind or even percussion instruments. Manufactured with the utmost care and the highest quality components, the microphone delivers an exceptionally clear, articulate sound with superior rejection of background noise. It's easy to attach the microphone to the bell of a brass or woodwind instrument using the integrated clip. And the HM40's built-in flexible gooseneck makes it easy to position the microphone element for optimal sound. The HM40's tight super-cardioid polar pattern maximizes gain-before-feedback. In addition, the HM40's high SPL capability makes it an excellent choice for a wide variety of instrument miking applications.

Features / Specs

  • High-quality shock-mounted condenser capsule provides high output and exceptional sound quality.
  • Brass over stainless steel wire gooseneck boom with matte black polyurethane coating
  • Convenient spring-loaded clip attaches to almost any instrument
  • Full-range frequency response for clear, crisp audio and natural sound reproduction
  • Tight super-cardioid polar pattern reduces background noise, minimizes feedback problems, and effectively rejects signals not directly in front of the microphone capsule.
  • Terminated with a P3 (TA3F) mini XLR connector

Specifications

Type Condenser microphone
Polar Pattern Super Cardioid
Frequency Response 40~18000 Hz
Sensitivity -42 dbV/pa (8mv/pa)
Rated Impedance 200Ω
Equivalent Noise Level 23dB (A weighted IEC/DIN 651)
Max. SPL 137 dB (THD less than but equal to 0.5% 1000 Hz)
Dynamic Range 114 dB
Power Supply 48V Phantom power (IEC 268-15/DIN 45596)
Current Consumption 3.5 mA
Weight 160 g
