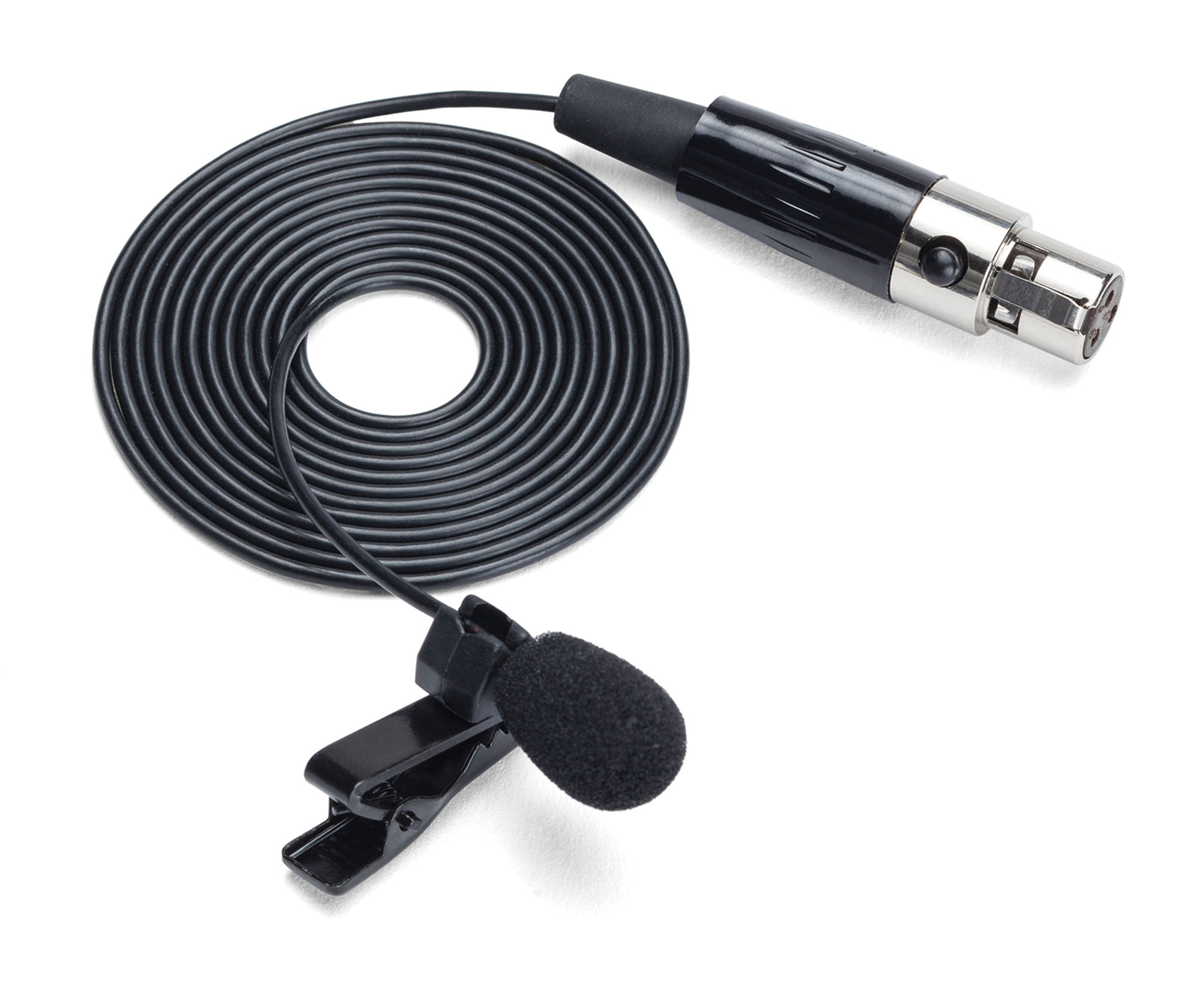

LM10B P3

Lavalier Microphone with P3 (TA3F) Connector

The LM10B P3 is a lightweight and discreet lavalier microphone solution that provides exceptional clarity and audio reproduction for live stage, broadcast, conference, lecture, presenter and house of worship applications. The miniature condenser microphone element clips directly onto a tie, lapel or other article of clothing for an unobtrusive and professional appearance.

Features / Specs

  • Lavalier microphone with 3mm condenser mic capsule
  • Omnidirectional pickup pattern
  • Lightweight/inconspicuous clip design for placement on ties, lapels, etc.
  • Ideal for broadcast, presentation, house of worship, theater and other vocal applications
  • 20Hz–20kHz frequency response
  • Includes cable with P3 (TA3F) connector

Specifications

Microphone Element Back electret condenser
Capsule Dimension 3mm
Polar Pattern Omnidirectional
Frequency Response 20Hz–20KHz
Sensitivity -45dBV/Pa @1kHz ±3dB
Output impedance 2kΩ ±30%
Maximum SPL 130dB
Self-Noise 30dB(A)
Dynamic Range 100dB
Operating Voltage 1.5–12V DC

Warning CALIFORNIA PROPOSITION 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
