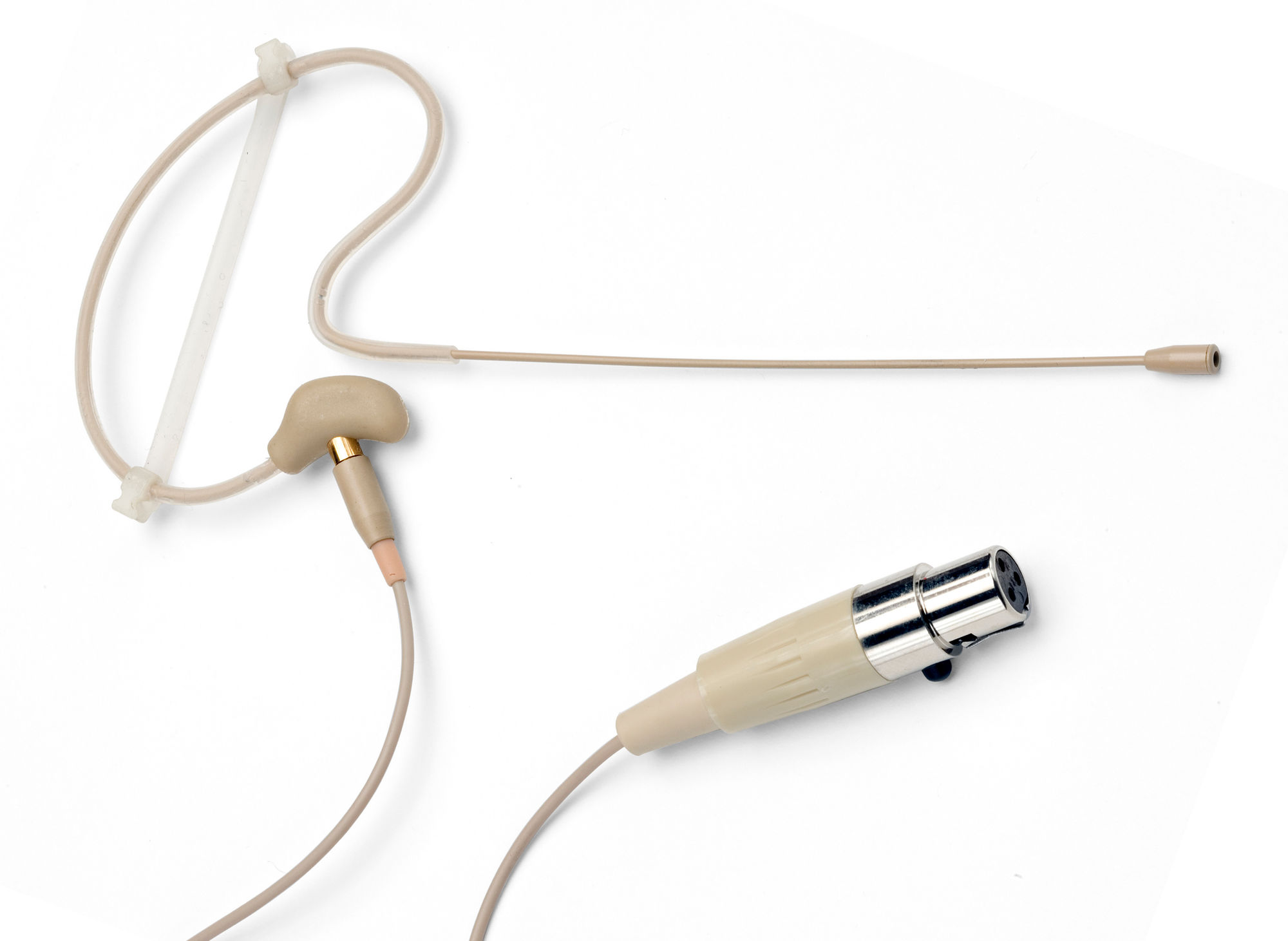

SE10X P3

Earset Microphone with P3 (TA3F) Connector

The SE10X Omnidirectional Earset Microphone is designed to be a comfortable, discreet wearable microphone that provides excellent audio performance. The earset includes a P3 (TA3F) connector to work with Samson beltpack transmitters.

Features / Specs

  • Earset microphone with 3mm miniature condenser mic capsule
  • Low-profile, single ear design with adjustable mic boom
  • Omnidirectional pickup pattern
  • 20Hz–20kHz frequency response
  • Gold-plated connector, moisture-resistant coating and stainless steel mesh grille
  • Dust and water/sweat-resistant rated at IP65
  • Includes cable with P3 (TA3F) connector

Specifications

Element Back electret condenser
Polar pattern Omnidirectional
Frequency Response 20Hz–20KHz
Sensitivity -45dBV/Pa @1kHz ±3dB
Output impedance 2kΩ ±30%
Maximum SPL 130dB
Self-Noise 30dB(A)
Dynamic Range 100dB
Operating voltage 1.5–12V DC
Cable ø1.4mm*1.2m
Weight: 0.09oz / 2.5g
Dimension ø3mm
