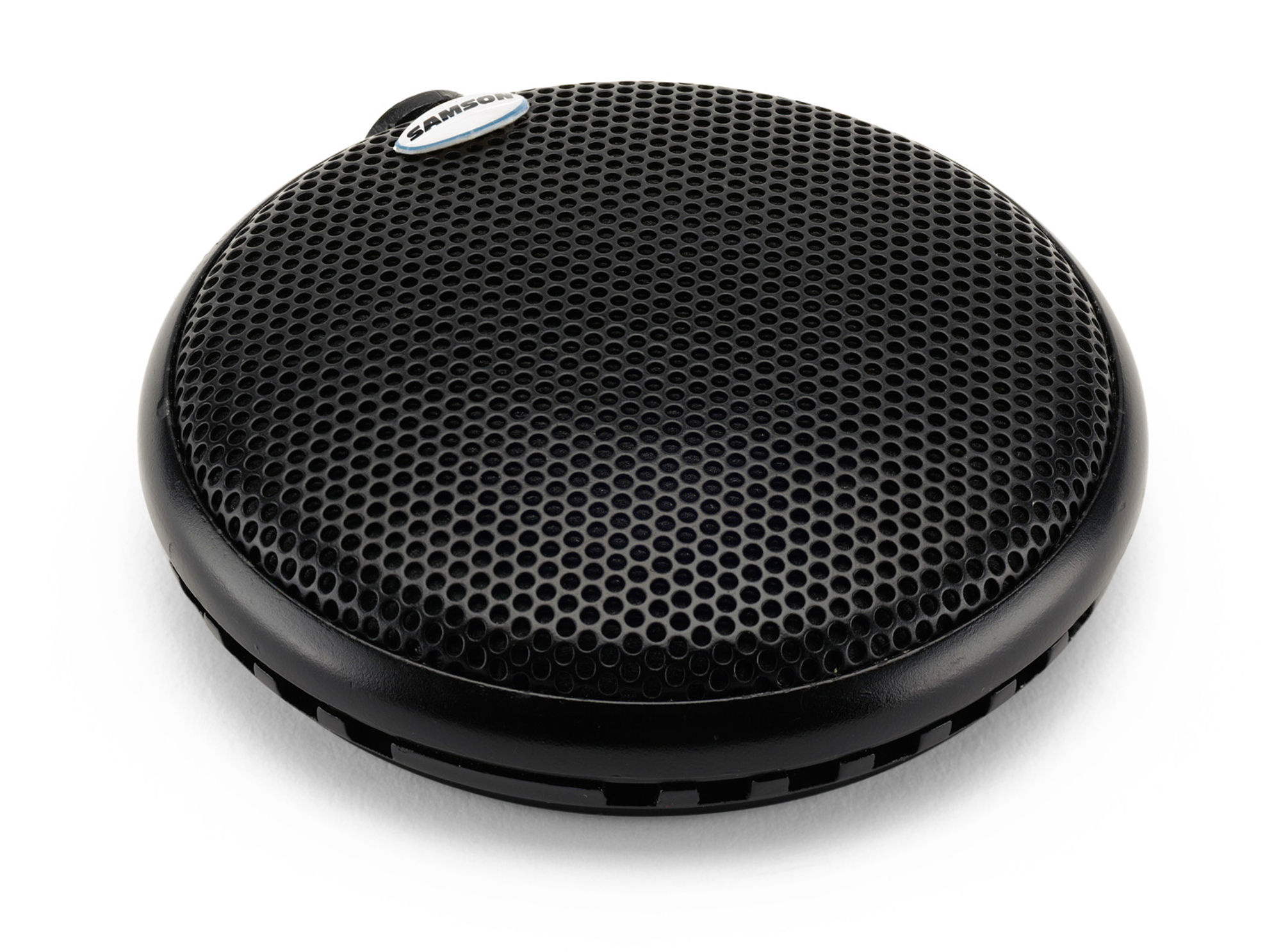

CM11B

Omnidirectional Boundary Microphone

The CM11B surface mount microphone has an omnidirectional polar pattern that captures sound in a 180-degree pattern. A perfect application would be to place a CM11B microphone in the center of a boardroom or conference table to pick up everyone in the meeting.

Great for: Audio for Video, Education, Theater / Production

Surface mount Omnidirectional boundary microphone
Condenser element
Half Omni Pickup Pattern
Internal Hi-pass filter
Mini XLR connector
Includes 30-foot cable with mini to standard XLR connectors
9-52 Volt Phantom Power Operation

Specifications

Element Type	Fixed charge condenser
Polar Pattern	Omnidirectional
Frequency response	30 - 18000Hz
Sensitivity	-39dBV/Pa
Rated impedance	600 ohms
SPL	127dB
Dynamic range	103dB
S/N ratio	70dB
Power Supply	9~52V phantom supply
Power consumption	4mA
