S-Zone

4-Input / 4-Zone Stereo Zone Mixer

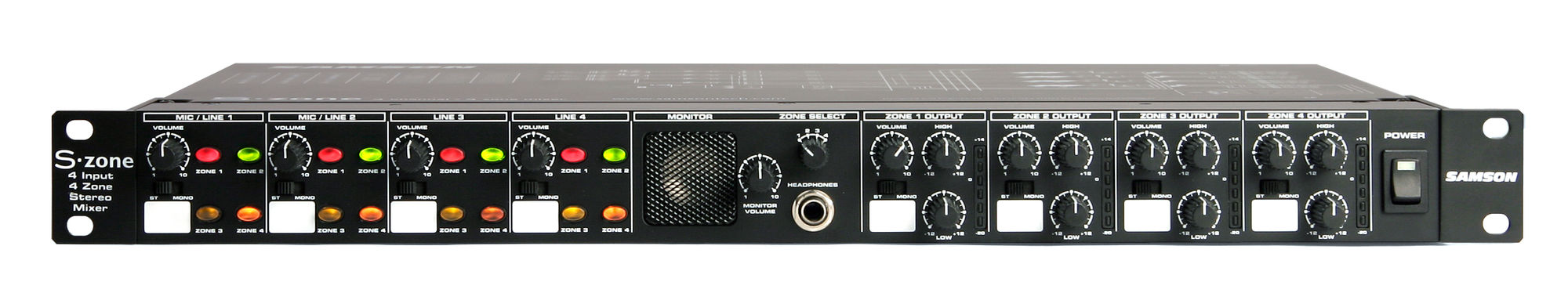

The S-Zone gives system installers all the features they need to control up to four zones of audio in a compact, single rack space unit. It features two balanced mic and four stereo aux/line inputs with a unique front panel control section that allows you to assign any of the four inputs to any of the four zones with the push of a button. The front panel layout also features input and output volume controls, independent 2-band EQ, and a built-in speaker for selectable zone monitoring.

Great for: Restaurant / Retail, Theater / Production, Fitness

4-channel/4-zone stereo mixer
Two Mic/Stereo Line inputs with ducking
Two Stereo CD/Line inputs
Onboard Speaker and Headphone monitoring
Euroblock output connectors
Remote Volume Control

Specifications

Input Impedance Mic	600Ω XLR balanced
Input Impedance Line	22K Ω
Max Input Level Mic	-14 dBV balanced
Max Input Level Line	+24 dBV
Maximum Gain Mic	60 dB
Maximum Gain Line	26 dB
Output Level	+17 dBV max.
Output Impedance Balanced	200 Ohms
Output Impedance Unbalanced	100 Ohms
Max. S/N ratio	96 dB
THD	<.02%
CMRR:	>52 dB (Mic)
Phantom power	+15 VDC
Tone Controls	LOW +/- 15 dB at 100 Hz / HIGH +/- 15 dB at 10 kHz
Inputs	6 PIN Euroblock
Outputs	9 PIN Euroblock
Power Consumption	5 Watts
Dimensions	19" x 7.5" x 1.75" / 482mm x 190mm x 44mm
Weight	5.1lb / 2.31kg
