Tourtek Pro TPF Flat Patch Cables

High Quality Cables

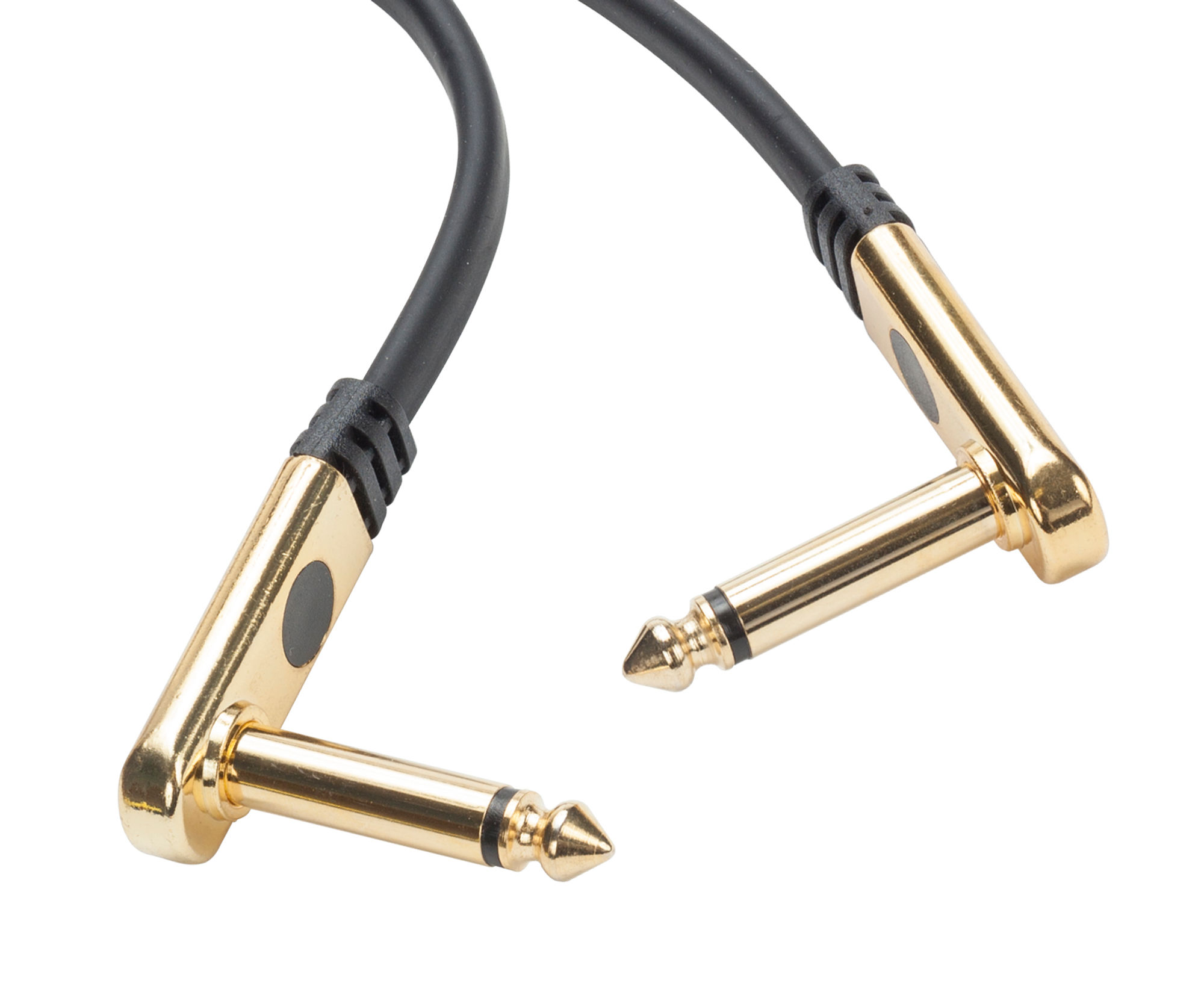

Tourtek Pro TPFAP Flat Patch Cables are designed to meet the demands of sound engineers and touring musicians. These rugged cables feature 90° 24k gold-plated connectors on both ends and a 4mm outer diameter, perfect for connecting effects pedals and saving valuable space on pedalboards. Constructed with 99.99% OFC (Oxygen Free Copper), Tourtek Pro TPFAP low-capacitance cables provide consistent performance while delivering an uncolored sound. Each cable features 95% braided shield coverage and carbon-impregnated conductive PVC insulation for ultra-low noise and excellent RF/EMI rejection.

Take a look inside

Tourtek Pro Cables use 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity. OFC wire is manufactured to remove all but a minute amount of oxygen and other impurities making it more resistant to corrosion. This means you'll experience the same high performance from your Tourtek Pro Cables for a long time.

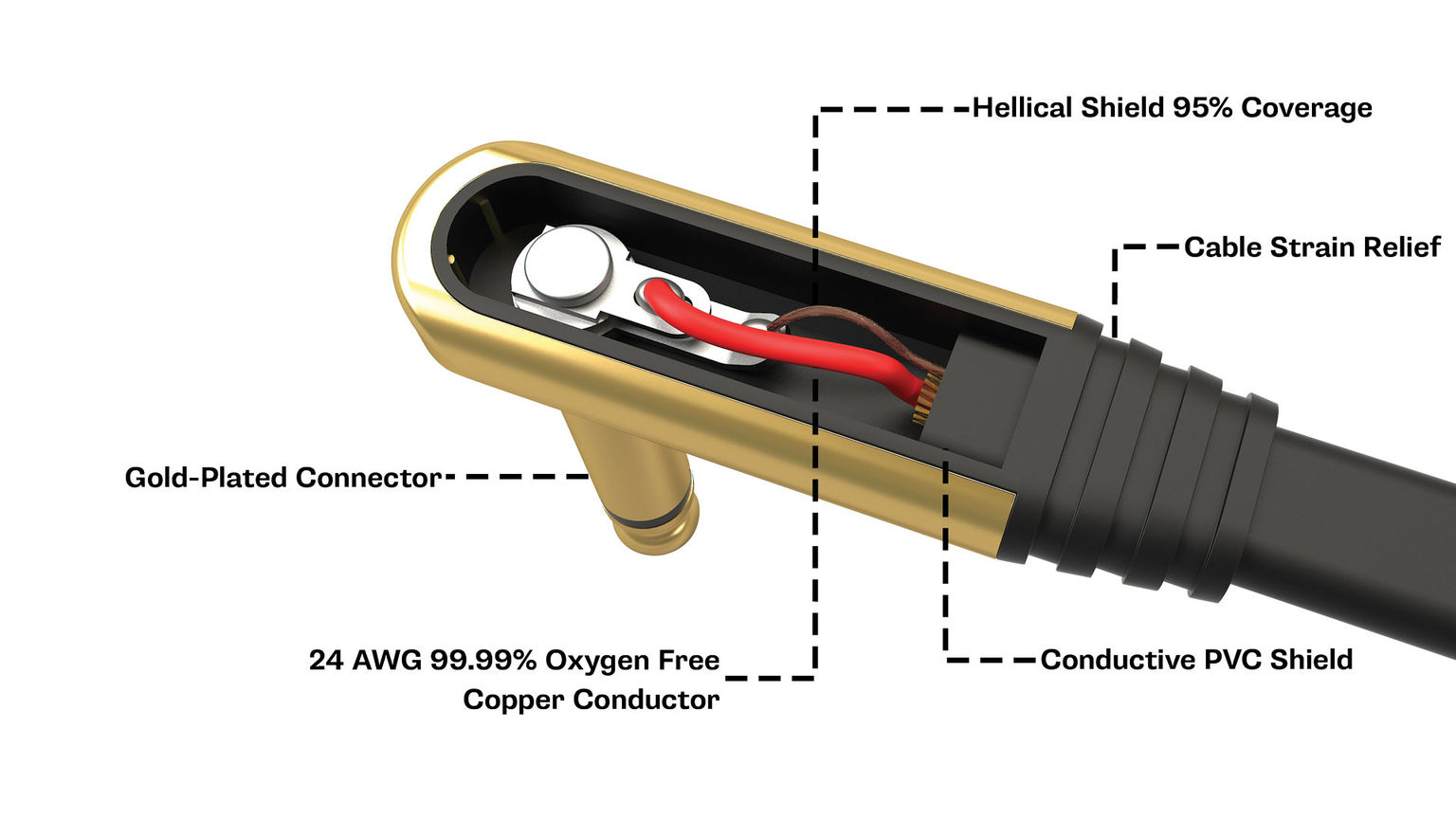

Tourtek Pro Flat Patch Cable Connector Cutaway

Features / Specs

Features

  • Right-angle 24k gold-plated connectors on both ends for secure connections
  • 4mm outer diameter saves valuable space on pedalboards
  • Constructed with 99.99% OFC for consistent and uncolored sound
  • 95% coverage braided shield and carbon-impregnated conductive PVC insulation for ultra-low noise
  • Ideal for sound engineers and touring musicians who demand rugged and reliable cables

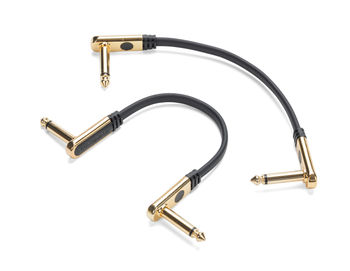

  • Available in 6" and 1' lengths.

Specifications

Conductor AWG Size & Stranding 24 AWG / 0.12x20
Capacitance Conductor to Shield 34.5pF/ft @1kHz
Conductor Material 99.99% Oxygen Free Copper
Insulation Material Polyethylene
Insulation Diameter 2.8mm ±0.05mm
Braided Shield Material Bare Annealed Copper
Braided Shield Coverage 95%
Jacket Material PVC, Matte Finish
Jacket Diameter 6.5mm/4mm ±0.1mm
