DEU1

Headset Microphone with USB adapter

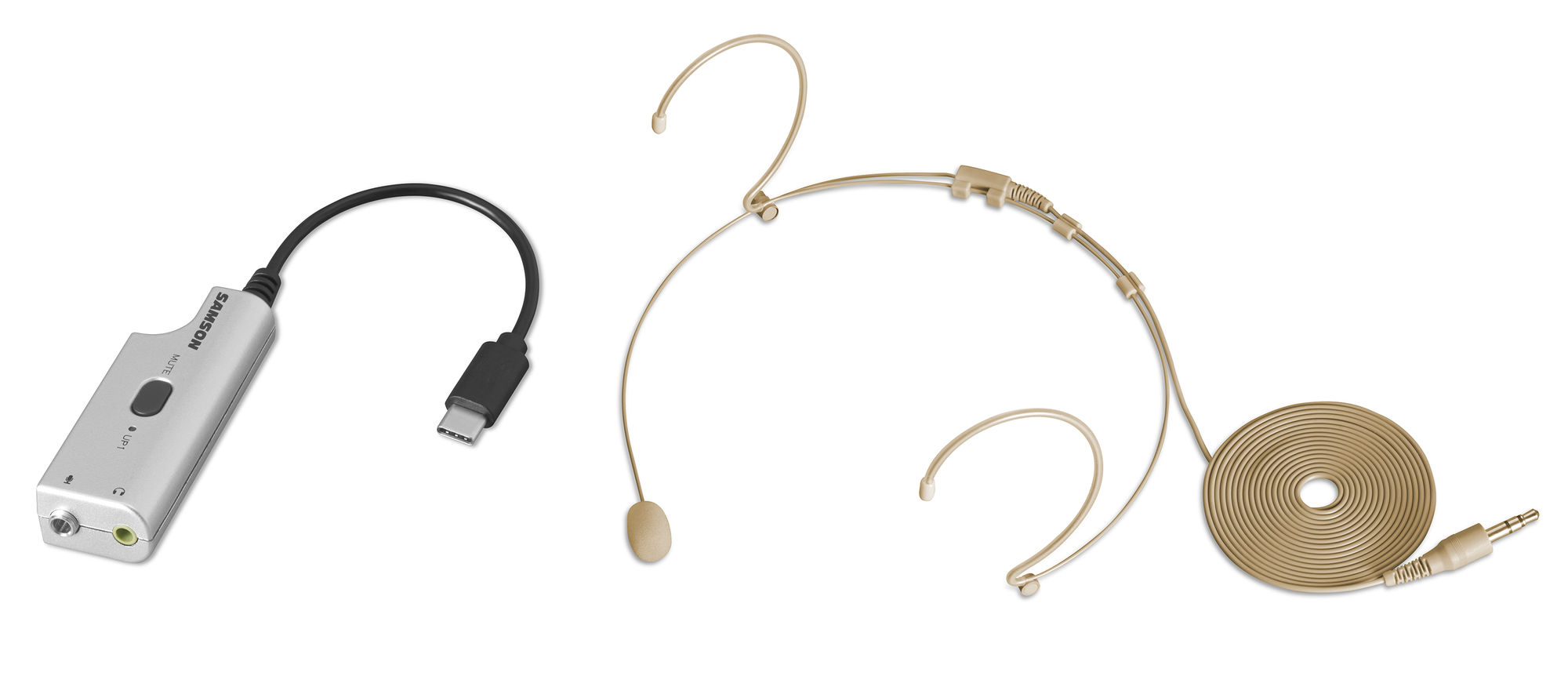

The DEU1 is a headset microphone with USB audio adapter bundle designed for content creators, journalists, vloggers, streamers and remote workers. Connect directly to a PC, Mac or Chromebook to capture broadcast-quality audio with simple plug-and-play operation.

Great for: Work From Home, Content Creation, Audio for Video, Education

Put Your Voice in the Spotlight

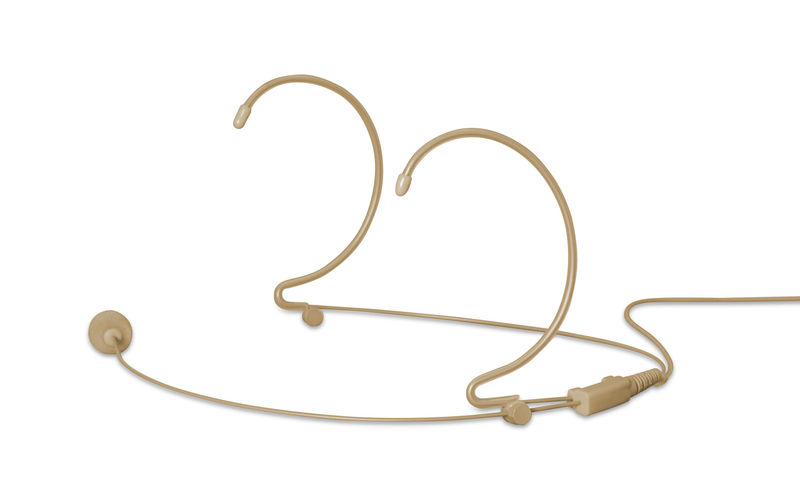

The DEU1 bundle includes a DE5, a low-profile headset microphone with a 5mm microphone capsule. An omnidirectional pickup pattern captures sound evenly in all directions without proximity effect or off-axis coloration. The result is clear, articulate voice reproduction regardless of the capsule's position relative to the sound source. The lightweight, binaural headset design provides a secure and comfortable fit.
Well Adapted

The UP1 is an analog-to-digital USB audio adapter with a 1/8" (3.5 mm) microphone input and a 1/8" (3.5 mm) headphone output. It features a USB Type-C connector and includes a USB C to USB A adapter for connection to any computer.

Features

DE5 Omnidirectional Low-Profile Headset Microphone
UP1 USB Audio Interface with USB C connecter
Includes USB C to USB A adapter
1/8" Microphone Input
1/8" Stereo Headphone Output
Mute Switch

Specifications

Microphone	DE5 Omnidirectional Low-Profile Headset
Microphone Input	1/8” mono input, T: signal +3VDC mic bias, R: n/c, S: ground
Frequency Response	12Hz-18kHz, +0/-1dB
Maximum Input Signal	+11dBu, ≤1%THD+N, 100Hz-20kHz minimum gain settings
Noise Floor	-89dBFS (A-wt.) minimum gain settings
Dynamic Range	87dB (re 0dBFS, A-wt.), microphone gain setting: -1.1dB
Headphone Output	1/8”stereo input, T: left channel, R: right channel, S: headphone ground
Frequency Response	20Hz-18kHz, +0/-3dB
Maximum Output Power	25mW (re 0dBVS, 22Hz-22kHz BW)
Noise Floor	-95dBU (A-wt.)
Dynamic Range	93dB (re-2dBU, A-wt.)
Digital to Analog Volume	0dBFS USB playback = -2dBu headphone out
USB I/O	USB Type-C (USB2.0), USB C to USB A adapter included
Bit Depth	16-bit
Sample Rate	44.1kHz/48kHz
Power	+5VDC, 100mA max
OS Compatibility	MacOS, Windows, Linux, iOS, Android
Weight	0.67oz / 19g
Dimensions 8.25" x 0.9" x 0.6" / 210mm x 24mm x 15.75mm
