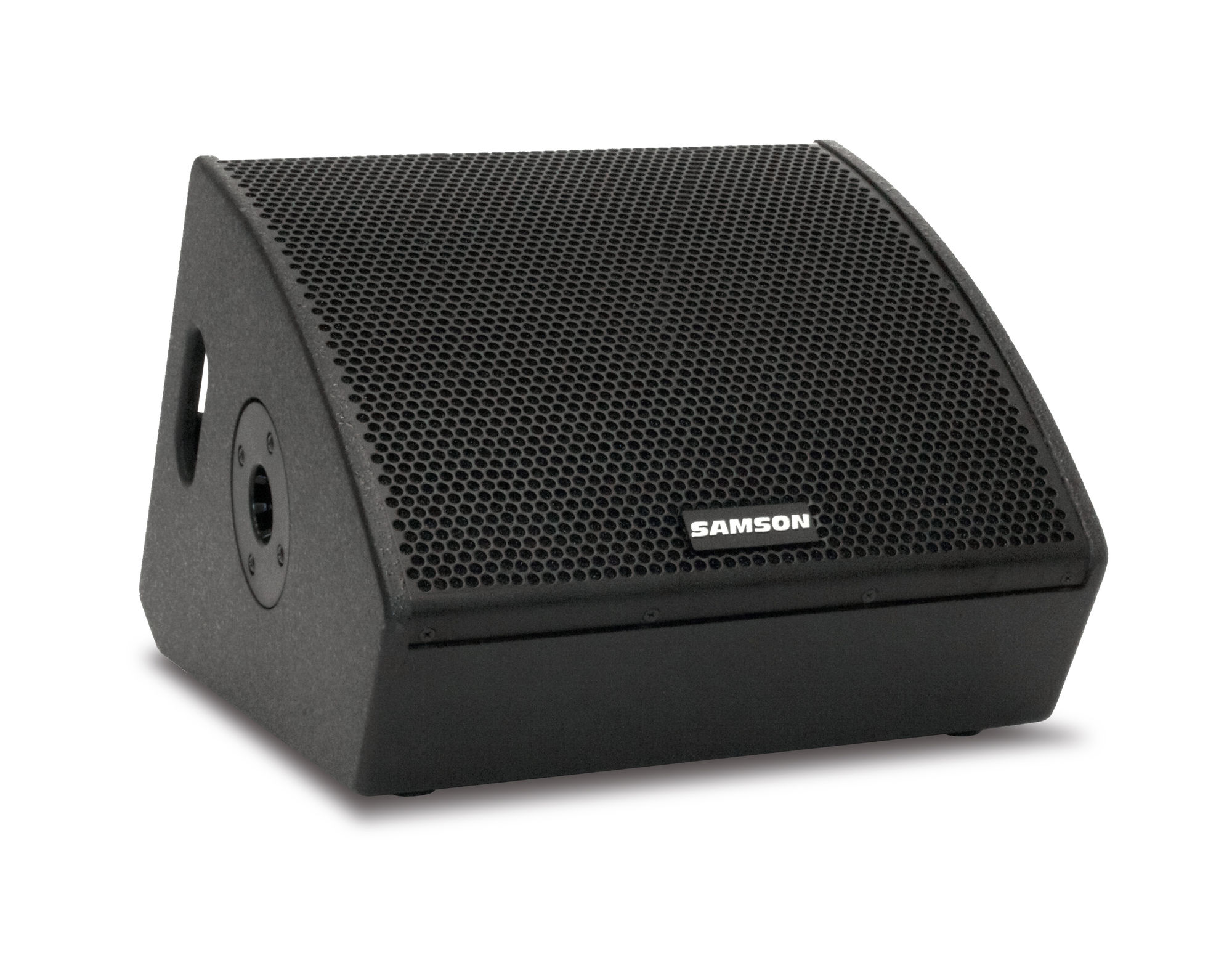

RSXM10a

10" 800-Watt Coaxial Powered Stage Monitor

The RSXM10a is a compact active loudspeaker designed to provide powerful, exceptional monitoring for front-of-house engineers, live sound professionals, musicians, and DJs. The 10" coaxial speaker with 1" horn-loaded tweeter provides wide coverage, while the ultra-efficient 800-watt Class D amplifier provides plenty of headroom for even the loudest stages.

Great for: Theater / Production, Fitness

Your Stage Sidekick

The RSXM10a produces 800 watts of Class D power through its 10" woofer and premium 1" horn-loaded tweeter. A compact, coaxial design gives the monitor amazing portability with impeccable sound. In addition, the RSXM10a features an integral 1 3/8" pole mount and a Monitor/FOH optimization switch for added flexibility.
Multi-Talented Monitor

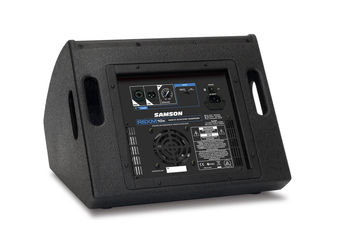

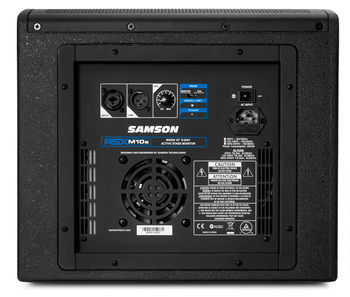

Designed to bring professional performance to a variety of monitoring applications, including keyboards and electronic drums, the RSXM10a is also convenient for DJs who need a dedicated monitor while working in a compact booth. A single XLR-1/4" combo input is provided, along with an XLR link output for system expansion. In addition, the RSXM10a features a powder-coated steel grille and two integrated side carrying handles, making it durable yet highly portable for use on the road.

Lightweight Class D 2-way active stage monitor
800 watts of output power
All-wood cabinet construction
Compact, coaxial design
10" low frequency driver
1" tweeter
XLR-1/4" combo input
XLR Link output
Dedicated Volume knob
FOH/Monitor selector switch to optimize sound

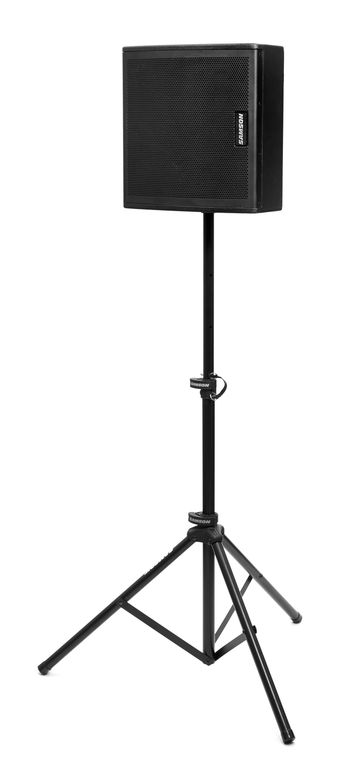

1 3/8" pole mount receptacle
Integrated side carry handles

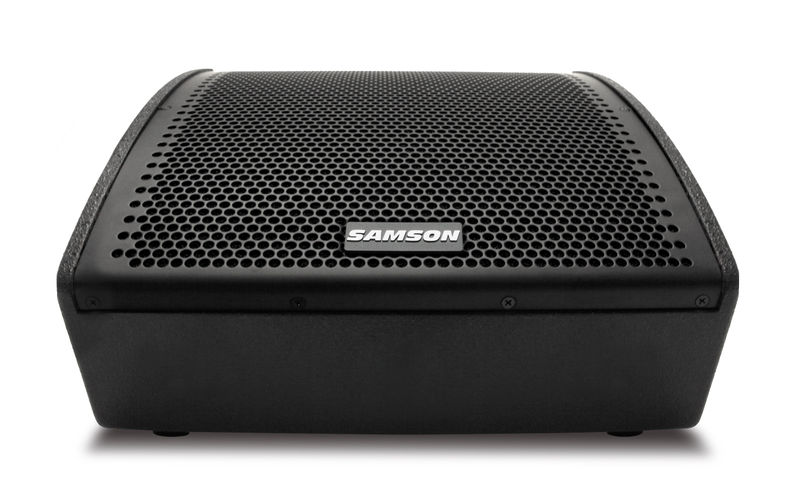

Perforated steel grill protects all monitor components
Durable black, textured paint finish

Specifications

Low Frequency	RMS: 350W / Peak: 700W
High Frequency	RMS: 50W / Peak: 100W
Low Frequency	10” (254 mm) woofer with 2” (51 mm) voice-coil
High Frequency	1” (25.4 mm) Driver with 1” (25.4 mm) voice-coil
Frequency Response (-3 dB)	60 Hz to 20 kHz
Maximum SPL (Peak Power)	125 dB SPL @ 1 m
Coverage Angle (Horz. x Vert.)	70° x 70°
Equalization Switch	Monitor, FOH (Front of House)
Crossover Type	12 dB/oct
Crossover Frequency	3.5 kHz
Inputs	Balanced XLR & 1/4” Connectors
Output	Balanced XLR Line Output
Mounting Method	Integral 1 3∕8” Pole Mount Receptacle
Dimensions	14.27” x 13.8” x 12.87” / 362.5mm x 350.6mm x 327mm
Weight	27.66 lb / 12.55 kg
