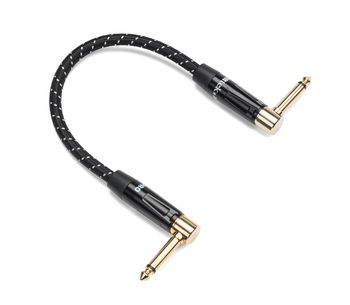

Tourtek Pro TPWAP Woven Fabric Patch Cables

High Quality Instrument Cables

Tourtek Pro TPWAP Woven Fabric Patch Cables are extremely durable patch cables that are perfect for connecting instrument effect pedals. Not only do they look great, they perform exceptionally well on stage or in the studio, and the braided woven jacket provides extra protection against kinks and cuts. Constructed with 99.99% OFC (Oxygen Free Copper), TPWAP provide a completely uncolored, pure tone in the signal chain. 99% braided shield coverage and carbon impregnated conductive PVC insulation provide extremely low noise and excellent RF/EMI interference rejection. Heavy-duty, black-chrome-plated brass connectors with 24K gold-plated plugs ensure each connection is secure while providing optimal signal transfer.

Product Model

Features

Braided nylon outer jacket protects cables from kinking or tangling
Constructed with 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity and resistance to corrosion.
Right-angle, Gold-plated contacts for clean signal transmission and prevent signal degradation.
99% braided shield and carbon-impregnated conductive PVC insulation for low noise and excellent rejection of RF/EMI interference.

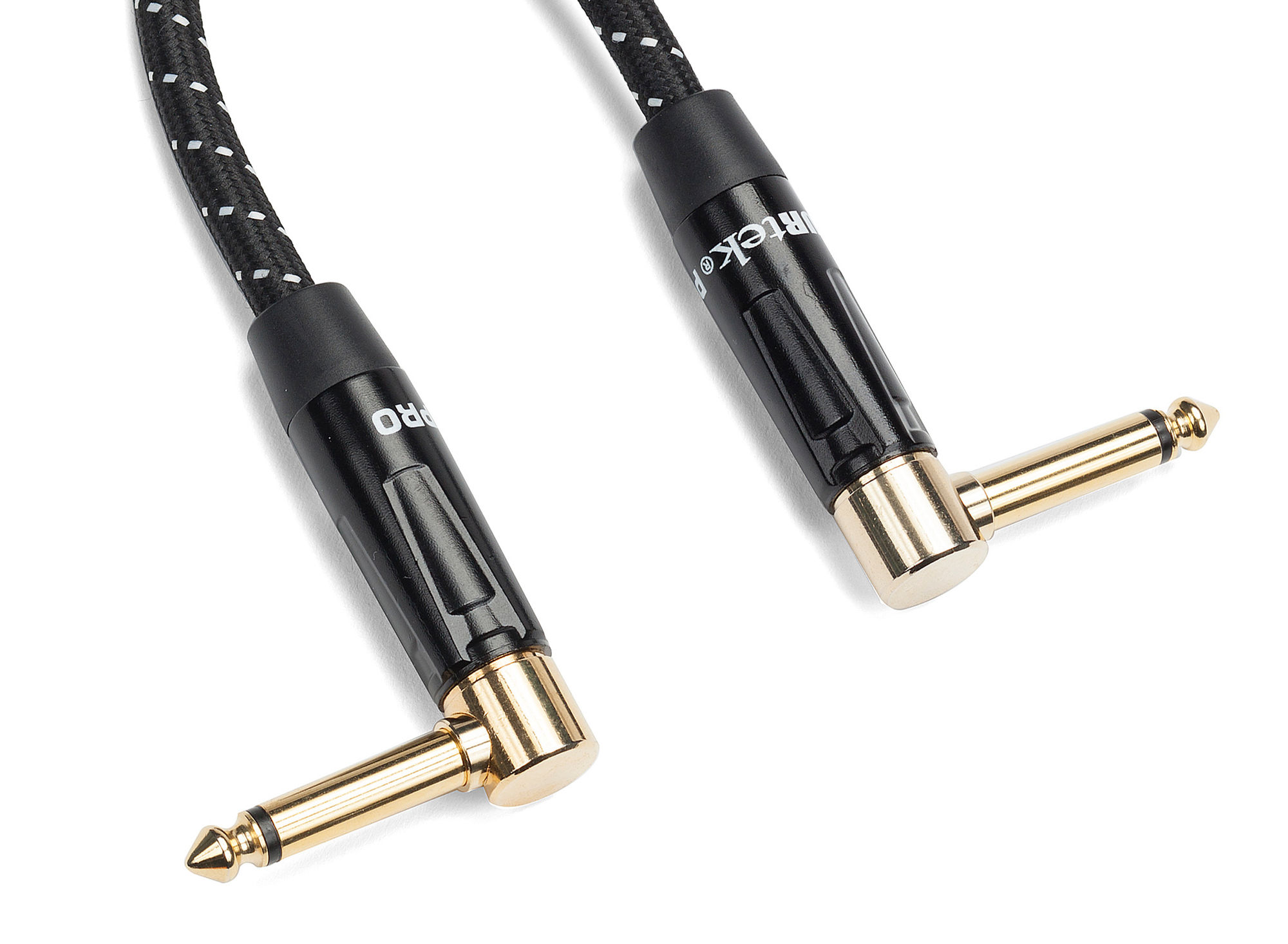

Heavy-duty, black-chrome-plated brass connectors with gold-plated plugs for durability and ruggedness in any sound reinforcement application.
Available in 6", 1' and 3' lengths

Specifications

Tourtek Pro TPWAP Woven Fabric Patch Cables Specifications
Conductor AWG Size & Stranding	20 AWG / 0.10x65
Conductor Capacitance Conductor to Shield	28.7pF/ft @1kHz
Conductor Material	99.99% Oxygen Free Copper
Insulation Material	Polyethylene
Insulation Diameter	2.8mm ±0.05mm
Braided Shield Material	Bare Annealed Copper
Braided Shield Coverage	99%
Jacket Material	Nylon Woven Finish
Jacket Diameter	7.0mm ±0.1mm
