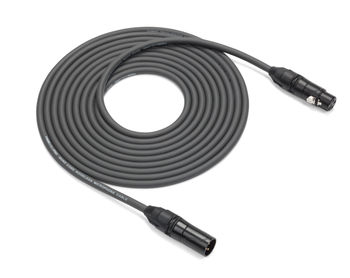

Tourtek Pro TPMQ Quad Core Microphone Cables

High Quality Microphone Cables

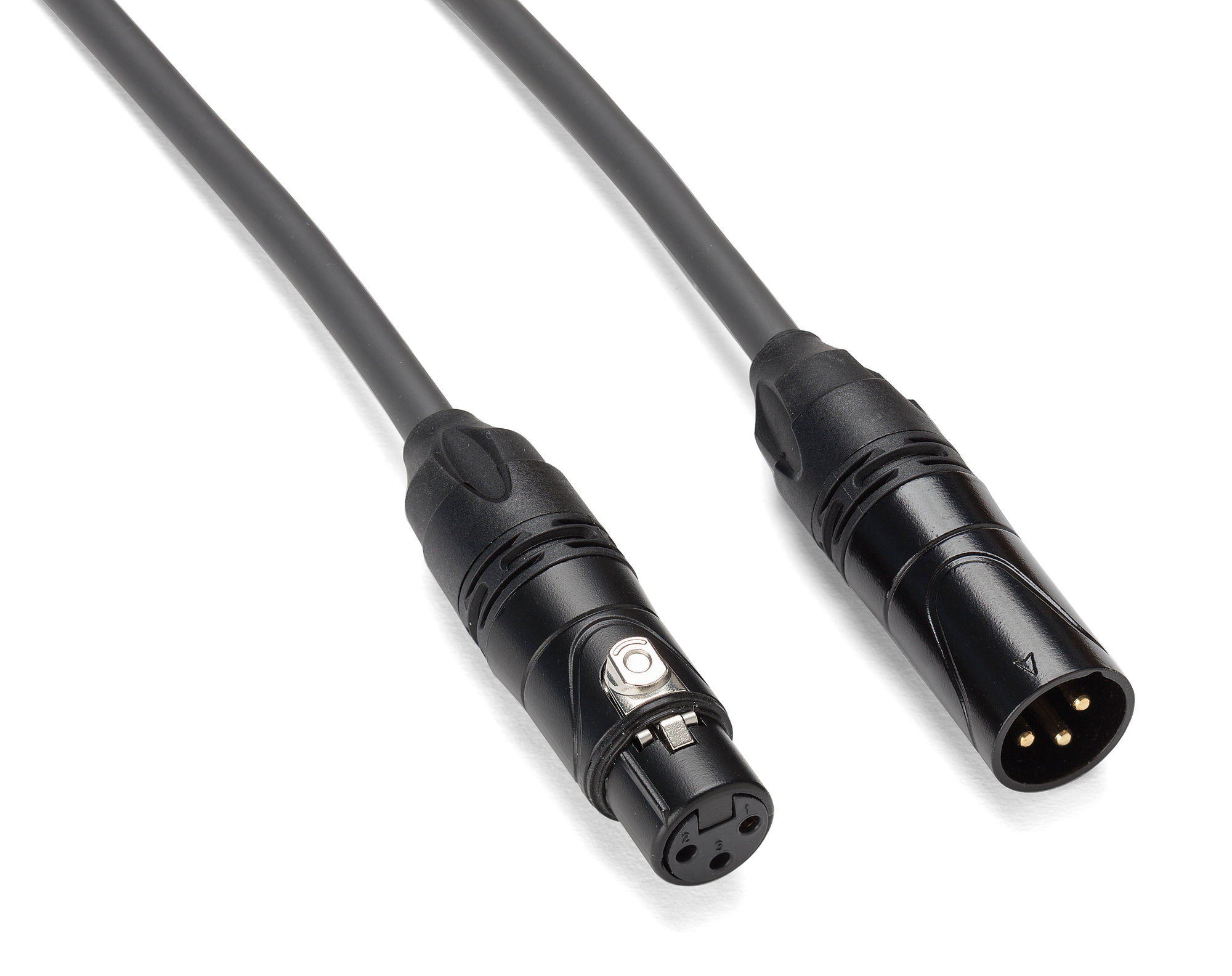

Tourtek Pro TPMQ Quad Core Microphone Cables are premium microphone cables with four conductors to provide immunity to electromagnetic interference that can pass through RF shields. Featuring 24AWG oxygen-free copper conductors and 99% braided shield coverage, TPMQ Quad Core Cables provide premium performance and noise rejection. Heavy-duty plugs with 24K gold-plated connectors provide secure, low-loss signal transfer. Durable construction with thick, yet flexible PVC outer jackets makes TPMQ Quad Core microphone cables an excellent choice in the studio or on stage.

Product Model

Features

Four conductors provide immunity to electormagnetic interference
Constructed with 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity and resistance to corrosion
Gold-plated contacts for clean signal transmission and prevent signal degradation

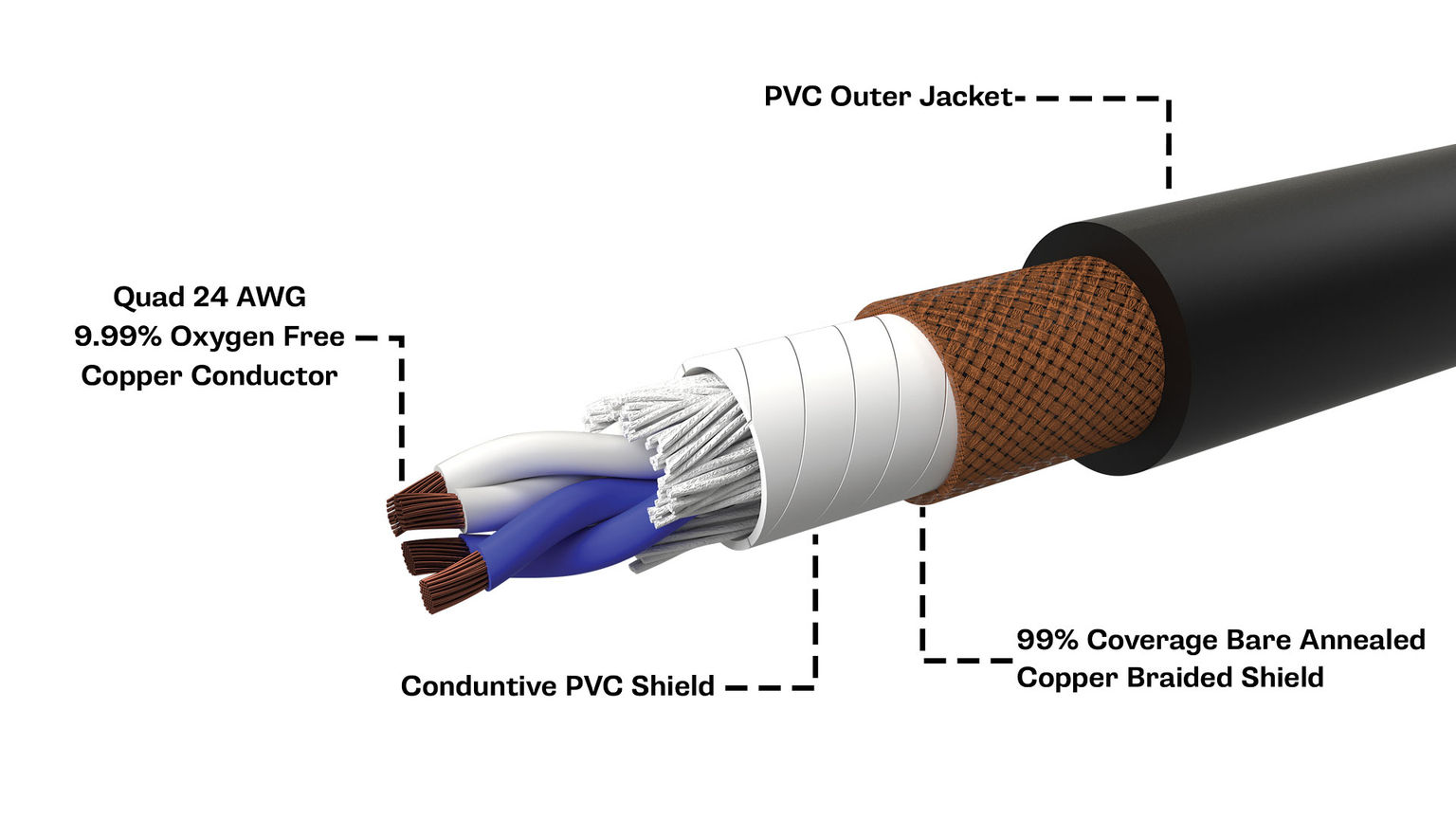

99% braided shield coverage and carbon-impregnated conductive PVC insulation for low noise and excellent rejection of RF/EMI interference
Heavy-duty connectors with gold-plated plugs for durability and ruggedness in any sound reinforcement application
Available in 15' and 30' lengths

Specifications

Conductor AWG Size & Stranding	24 AWG / 0.08x40 (x4)
Capacitance Conductor to Shield	47.5pF/ft @1kHz
Capacitance Conductor to Conductor	29.6pF/ft @1kHz
Conductor Material	99.99% Oxygen Free Copper
Insulation Material	Polyethylene
Insulation Diameter	1.35mm ±0.05mm
Braided Shield Material	Bare Annealed Copper
Braided Shield Coverage	99%
Jacket Material	PVC, Matte Finish
Jacket Diameter	7.0mm ±0.1mm
